is responsible for designing, engineering and supply of complete material handling packages for the chemical, petrochemical, plastics, minerals, food and pharmaceutical industry. We have installed flyash, an integrated computer network supported by SAP ensuring timely and efficient execution of every project order.
We shall strive to deliver Customer Engineered Products & Projects in the areas of Environment, Grinding & Conveying to fulfil customer's requirements consistently through,
PiMire Cyclones are available in carbon steel, stainless steel or high alloy construction refractroy and for ceramic lined units area also available for abrasive/high temperature applications.
single twin and quad arrangements are available as standard configurations. special arrangements can be suppled to meet your plant layouts. Our common dust happers and outleet plenums are custom designed to suit each application
PiMire cyclone collection are designed to achieve high dust collection effficiencies at low
This unit is suitable for low pressure drop applictions. it achives high collection effciencles in 5-10 micron range with low liquid rates.it utilizes a tangential gas inlet and stationary scrubbing vanes to induce centritugal motion of the gas for removel at dust. There are no moving parts. its non-clogging, self-draining design makes it an ideal choice for may applications
Unit can be furnished with a fixed, butterfly or two door v venturi throet section; smooth or flooded eibow and a conventional cyclonic mist separator. Larger separators may be furnished with radical inlet and mesh pad or chevron type demister section. High collection effciency cna be achieved.
GRINDING MEDIA FOR THE VARIATIONS IN CEMENT MANUFACTURING and grinding different minerals at mine.

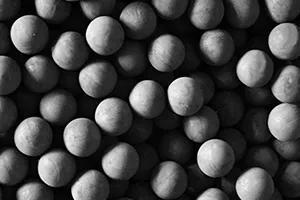

Steel balls are the most widely used grinding media in cement mills. They are made from carbon steel and are available in various diameters. Steel balls are used to crush and grind the raw material in the cement mill.
Changing impact conditions can cause conventional grinding media to either work harden or cause spalling - thus shortening working life, increasing downtime and increasing costs. For more information on suitability and availability of grinding media for your applications, please contact us. Grinding media is just one of the ways and PiMire Industries can help improve cost-effectiveness.
Good quality stel balls forged grinding media for ball mill (ISO, SGS )
We Deal With Various Natural Ores :
Iron | Copper | Rock Phosphate | Power |
Platinum | Bauxite | Metal Slag | - |
Gold | Lead - Zinc | Coal | - |
Cement Mill Grinding Media Charging Chart -1 -100 TPH
1 | PE Series Jaw Crusher |
---|---|
2 | PEW Series Jaw Crusher |
3 | S Series Cone Crusher |
4 | PF Series Impact Crusher |
5 | B Series VSI Crusher |
6 | MTW Series Trapezium Mill |
7 | LM Series Vertical Mill |
8 | Hammer Mill |
9 | Mobile Crusher |
10 | Vertical Mill |
1 | Unbreakable |
---|---|
2 | Even Wearing |
3 | Good Wear resistance |
4 | Good & Even Hardness |
5 | Size : Dia 20mm - 150mm |
6 | Surface Hardness -55-67 HRC & Volume Hardness 50-63 |
7 | Edurance Test Time > 10000 |
8 | Impact Test > 12AK.J/CM2 |
PiMire Industries offers independent services to its clients all over the world based on the knowledge and experience of its highly skilled and dedicated professionals. It is one of the fastest growing companies in India. Since 2003, a strong, customer focused approach and the continuous quest for world class quality have enabled it to attain and sustain leadership in all its major lines of business.
PiMire Industires Is Actively Involved in Following applicaions,
PiMire Industries has an international presence, with office spread in African country. A thrust on international business has seen overseas earnings grow significantly. It continues to grow its global footprint, with office in East Africa.
The company's businesses are supported by a wide marketing network, and have established a reputation for strong customer support.

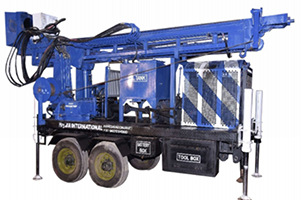

This is a Trolley Mounted Diamond Core Wire Line Drilling Rig especially designed for surface core drilling up to 984 foot (300 Meters) for a NQ Size. High speed top head rotary head can do various HQ, PQ and NQ drill sizes. It is also capable of Rotary drilling with 4700 Kg pull up force and 150-1000 RPM. The rig is especially designed for surface exploration.
Technical Specification- Trolley Mounted Diamond Core Wire Line Drilling Rig | |
---|---|
Drilling Depth | PQ - 50 Meter, HQ - 150 Meter, NQ - 300 Meter |
DRILLING ANGLE | 45° TO 90° |
PRIME MOVER | Rig hydraulic system is powered from 110 Hp deck engine |
MAST | 6" Channel Structure Mast, Height - 5.5 Meter (18 Foot), Rod Handling - 120", Centralized Open |
PULL UP SPEED 21 Meter / Min (69 Foot/Min) | 6 300 Kg / 13 890 lbs |
PULL DOWN SPEED | 42 Meter / Min (137 Foot/Min) |
PULL DOWN FORCE | 3 700 Kg / 8 157 lbs |
HYDRAULIC SYSTEM | 210 Kg/cm2 (3 000 psi) Oil Tank - 400 Liters, Oil Filters - SC2 -75 - 02 no. Variable Displacement Pump for Feed, Rotatoin and Winches - 01 No. Fixed Displacement Pump for Water Pump - 01 No. Fixed Displacement Pump for Oil Cooler - 01 No. hydraulic Oil Cooler -70 GPM |
FEED SYSTEM | Hydraulic Cylinder with 1:1 Ratio |
ROTARY HEAD | Maximum Torque 303 Kg-Meter (26 400 lbs-inch), OMT-315 Orbital Motor Rotary Head Sliding |
ROTARY HEAD SPEED | 150 to 1000 rpm |
WATER PUMP | 117 LPM , 39 Kg/cm2 Triplex Piston Pump driven by hydraulic motor |
FOOT CLAMP | Mechanical Rod Clamp has gripping range of PQ, HQ and NQ Rods |
WINCH | Main Winch - 3 Ton, Line Speed - 45 Meter/Min Wire Line Winch - 0.5 Ton, Line Speed - 70 Meter/Min |
ADDITIONAL FEATURES | Night Lights, Tool Box |
LEVELLING JACK | Four Hydraulic Leveling Jack for accurate leveling drill point having separate lever |
CONTROL PANEL | All necessary control and monitoring valves and gauges are installed at control panel located nearer to drilling point for dr convenience. |
OPERATOR PLATFORM | Detachable working pla |

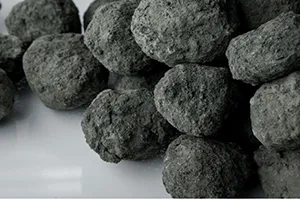

Clinker is the backbone of cement production. It is essentially a mix of limestone and minerals that have been heated in a kiln and have been transformed by this heat.

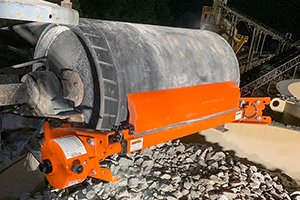

Consequences of Carry back, Carry back is material that sticks to the belt past the discharge point and then drops off along the conveyor's return run Reduced operating efficiency and profitability through increased expenses for maintenance and cleanup and the loss of material. Material buildup on rolling components leading to seized idlers, wandering belts and increased power consumption. Lower plant morale as employees don't care if it's dirty" attitude sense the "I Unsafe working conditions caused by material accumulation on floors and walkways, creating fire hazards, slip/trip hazards Health hazards and environmental concerns created by airborne material. Unfavorable attention SuperMax Belt Cleaners as the first stage in a multiple cleaner system, the primary SuperMax cleaner removes the majority of material adhered to the belt, leaving only a thin layer of sticky fines. SuperMax Primary cleaner is generally tensioned at low pressure-roughly 2 psi (13.8 kPa)-against the belt. Low blade-to-belt pressure allows the SuperMax primary cleaner to be positioned at a peeling angle against the belt.
The use of higher pressure at this angle would endanger the belt, splice or cleaner itself. SuperMax Primary cleaners are typically installed on the face of the material buildup and installed so that it is out of the material stream. SuperMax Secondary cleaner are the most important scrapers in any belt cleaning system, removing up to 98% of material clinging to belt surfaces. They can be used singly or in tandem if necessary and, should be used in conjunction with a SuperMax Primary scraper for optimum performance. Custom-designed rubber buffer simprove belt contact pressure, irrespective of belt profile or irregularities. Choice of blades for optimal performance in abrasive or corrosive conditions.
Taper Trough Tracker offers the ultimate intracking performance on the load-carrying side. This design is highly responsive and quick to activate on both loaded and unloaded conveyors. As the taper wing rollers are in line, it operate on both directional conveyor belts. The tracking is done by the tapered wing rollers which are lagged and is compatible with belts. The tapered wing rollers activates the tracker immediately, as the belt moves off centre, ensuring that there is no 90 degree contact with the belt edges
The Flat Return Tracker employs a unique and highly No Model Belt Width (mm.) effective tracking action, which is non-damaging to the belt and kicks in immediately if the belt begins to drift off centre. Because it does not rely on contact with the belt edge in order to guide the belt, belt edge damage, is avoided. The SuperMax roller has special tapers (similar to a crown pulley) on the outer edges of the tracker.

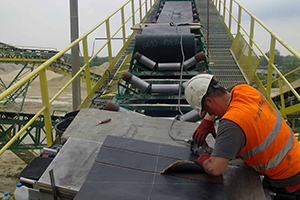

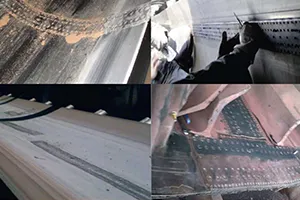

The best solution quick, strong and economiacl splicing of textile fabric conveyor belts. Now available with us - for shipment along with your conveyor belt orders.
Description. SUPER-SCREW®* is designed with a high abrasion resistant rubber of 50 mm³, useful for the most demanding and severe applications.

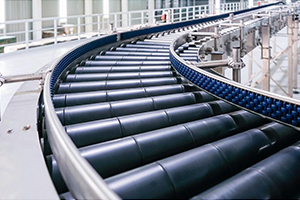

Ultra-high molecular weight polyethylene (UHMWPE) belt conveyor roller is a high-tech product, which consists of uhmwpe pipe, metal bearing, metal shaft, plastic bearing housing, sealing ring and so on. Compared with metal roller, uhmwpe plastic roller has many obvious advantages in perfor-mance.
Rollers usually play a very important role in the overall belt conveyor projection. So choice the high quality rollers not only guarantee a long working life but also avoid save the cost that equipment may not function that business of the plant being interrupted. So based on aware of this, we innovation our new composite roller which is most economic and efficient compare with other rollers.
A material handling system is a collection of processes, equipment, and people that move, store, and protect materials as they move through a facility.
